X-Line Geo Calibration

Geometry calibration of the X-Line inspection system is an essential prerequisite for successful image acquisition during inspection and for processing the inspection results.

Geo Calibration must be carried out:

• after system installation,
• after replacing the X-ray source or the detector(s), and
• after relocating the system.

A geo calibration tool can be purchased or a loaner can be requested.

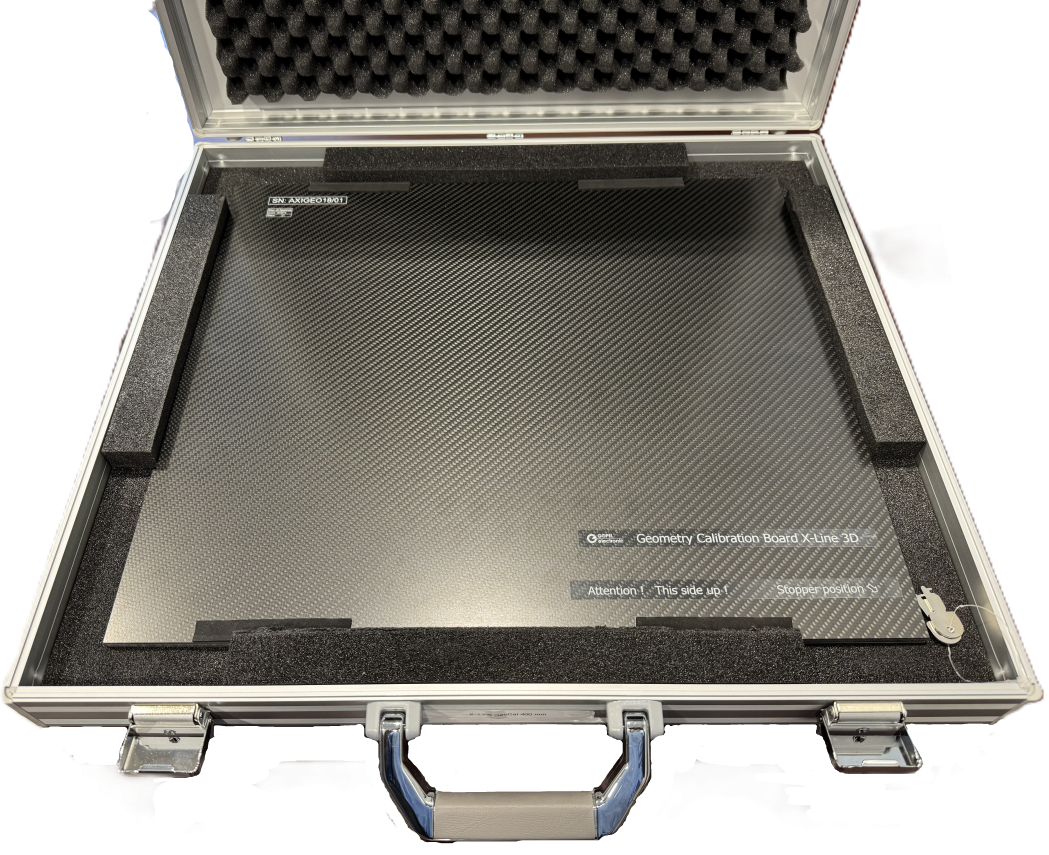

p/n 1021511 — Calibration Tool X-Line 3D
